NEXGEN GREENSHIELD PE Membrane is a high performance, heat weldable, single side fleece backed Polyethylene (HDPE) sheet, manufactured & supplied in specific thickness, designed for waterproofing basements & podiums of new buildings. The membrane is designed for adhesion to RCC for easy application below rafts & reinforcements.
Based on advanced polymer chemistry, the membrane has excellent resistance to chemical acids, bases, alkalis, salts and other corrosive materials, while providing a barrier to water seepage from below ground. The sheet remains flexible over years, maintaining its integrity and continuing to provide protection.
High mechanical properties of the membrane ensure superior puncture resistance, breaking & tearing strength, while enabling excellent heat weld for fusion along the edges.
Features & Benefits
- Supplied in pre-manufactured standard thickness. No need to worry of thickness variation at site, unlike liquid applied systems.
- Outstanding puncture resistance, high breaking and tearing strength, with very high peel strength of seam joints and heat welds
- Chlorine free, plasticizer free, phthalate free. Environmentally friendly and safe for humans
- Exceptional resistance to heat, UV, Ozone, bacteria, chemical, acid corrosion
- Resistance to root penetration, suitable for green roofs
- Continuous serviceability from -30oC to 100oC – without cracking, tearing or brittleness failure
| Roll details | Thickness (mm) | 1.2 | 1.2 | 1.2 |
| Width (Mtr) | 1.2 | 1.6 | 2.0 | |
| Length (Mtr)/td> | 20 | 20 | 20 | |
| Sq.mts (Mtr2) | 24 | 32 | 40 | |
| Weight (Kgs) | 26 | 34 | 43 | |
| Storage | Store membranes in dry & clean conditions and in their original, closed wrapping away from sources of chemical contamination, damage, ignition sources and open flame. Shelf life is beyond 5 years. Exercise caution when lifting, moving, transporting, storage & handling to avoid puncture and physical damage | |||
| Coverage | The dimensions of the membrane are calculated to cover the substrate, including seam overlaps Standard Seams: 75 mm; Seams with mechanical anchoring: 150 mm Upstands: additional length of 150mm | |||
Application Areas

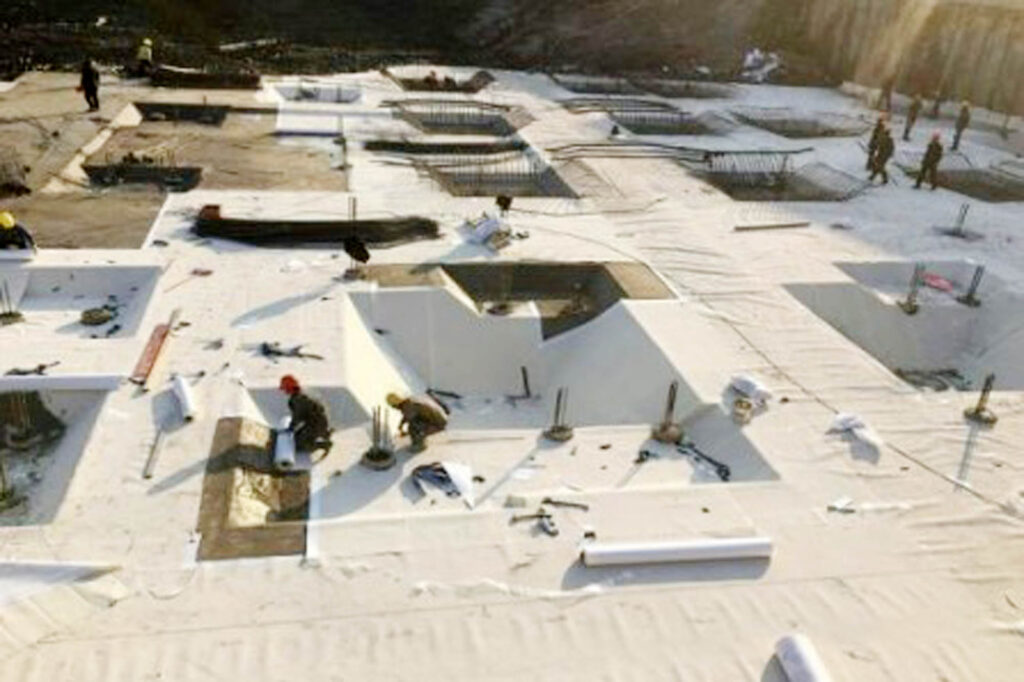

- Basement Waterproofing
- Below raft
- Side walls
- RCC Podiums
- Car Parks
- Roads & Bridges
- Canals, Subways, Tunnels & Underpass
- Underground Metro Stations
| PROPERTY | NEXGEN PE SINGLE FLEECE 1.1 |
|---|---|
| Nominal Thickness | mm; ASTM D751 | 1.2 ± 10% |
| Typical Weight | Kg/m2 | 1.05 ± 10% |
| Breaking Strength | Kg/cm2; MD/TD; ASTM D 412 | 250 Min 270 Typical |
| Elongation at Break | %, MD/TD; ASTM D 412 | 60 Min 80 Typical |
| Tearing Strength | Kg/cm; MD/TD; ASTM D 412 | 100 |
| Puncture Resistance | Kg; ASTM D751 | 20 |
| Brittleness Point | °C; ASTM D 2137 | -30°C |
| Linear Dimensional Change | %; 6hrs @ 70°C; ASTM D 1204 | 1.0% Max |
| Factory Seam Strength | LBF; ASTM D 751 Grab Method | 66 Min 80 Typical |
| Weather Resistance | KJ/(m2.mm); ASTM G155 | > 21,600 |
| Water Vapour Permeance | Perms; ASTM E96, Procedure B | 0.10 Max |
